How Chiplet Thermal Interface Material Selection Locks In Junction Temperature Before Any Simulation Runs

Pick the wrong thermal interface material and no amount of heatsink engineering fixes the junction temperature problem downstream. That sounds obvious. In practice, the material selection conversation happens too late in far too many chiplet programs, after floorplanning is frozen and the package stackup is committed.

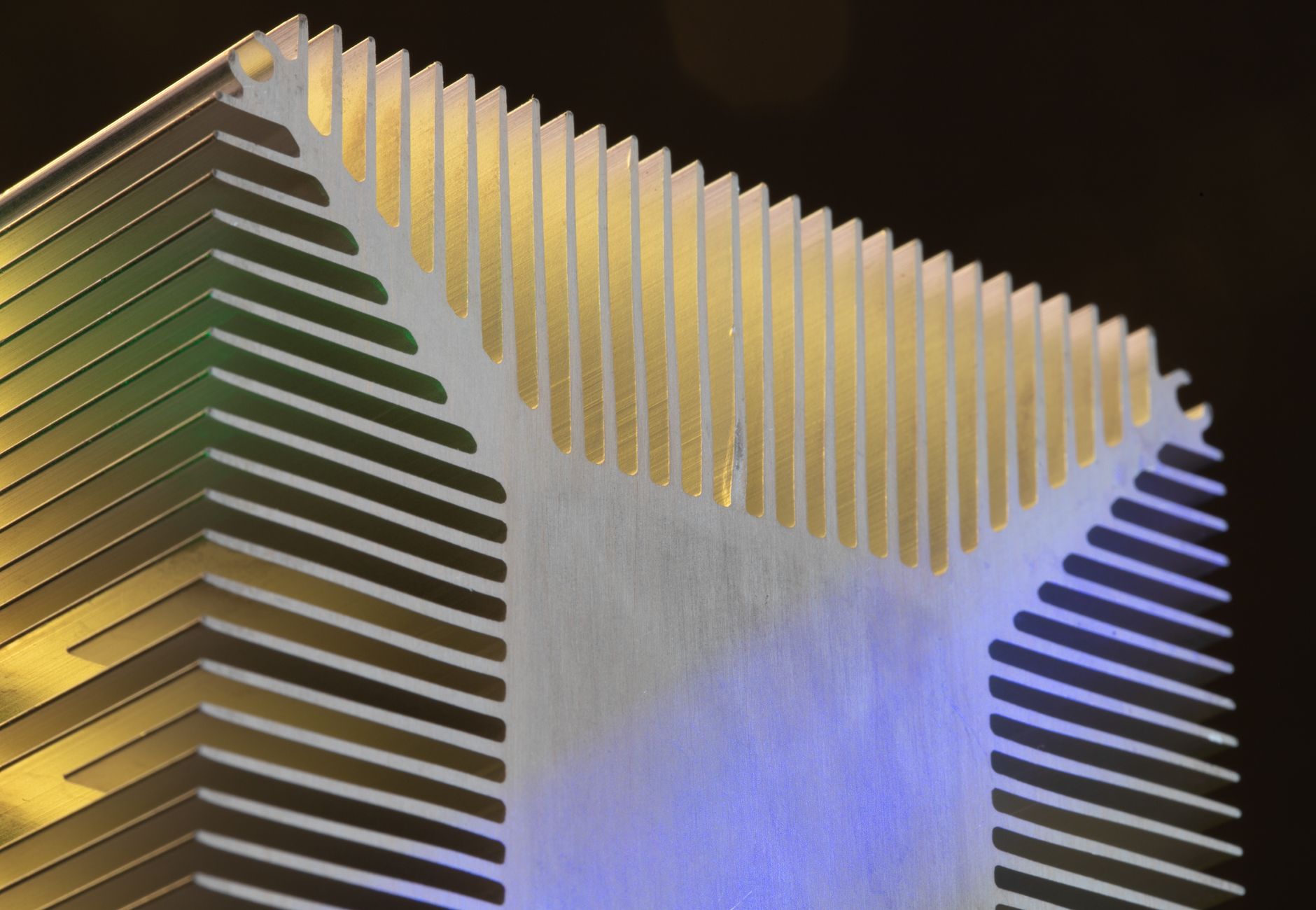

Photo by Nic Wood on Pexels.

Why does timing matter so much here? Because the thermal resistance from junction to ambient is a series chain, and the TIM layer sitting between a chiplet's back-side silicon and the integrated heat spreader (IHS) often contributes 0.05 to 0.15°C/W per square centimeter. That range sounds narrow until you multiply it across a 200 mm² active die running 150 W. The numbers shift junction temperature by 7 to 22°C before a single cooling fin is sized.

The Stack in Practice

A typical chiplet package has at least two TIM layers:

graph TD
    A[Chiplet Die]
    B(TIM1: Die to IHS)
    C[Integrated Heat Spreader]
    D(TIM2: IHS to Cooler)
    E[Cold Plate or Air Cooler]
    A --> B --> C --> D --> E

TIM1 does the heavy lifting. It bridges the microscopic surface roughness between the back-side silicon and the IHS copper, and in multi-chiplet packages there is a geometric complication: die height variation. When a compute die and an HBM stack sit side-by-side under a single IHS, their z-heights often differ by 50 to 150 micrometers. The TIM1 must accommodate that delta without voiding on the taller die or creating a gap on the shorter one.

Indium solder TIM (thermal conductivity: 80 to 86 W/m·K) handles the height mismatch better than polymer-based TIMs (3 to 12 W/m·K), but indium is a solder joint. It requires a defined reflow step, it can creep under sustained compressive load, and its cost makes procurement teams nervous at scale. Polymer phase-change materials are cheaper and forgiving to apply, but their thermal conductivity ceiling means you are trading 40 to 50°C of junction margin for convenience.

The right answer depends on the power density, the height mismatch budget, and the rework requirements, and all three of those are known early.

What Gets Decided Before Simulation Opens

Thermal simulation teams typically receive a package geometry, power map, and material set, then iterate to close a junction temperature budget. But the material set is the input, not the output. By the time a full thermal model runs, the substrate vendor has already quoted a stackup with specific copper mass that assumes a particular IHS flatness spec. That flatness spec determines the maximum TIM1 bondline thickness, which caps the compliant height range the TIM can accommodate.

Change the TIM type after that point and the IHS flatness spec, the die attach process, and the package assembly sequence all need to be revisited. Those are not quick conversations.

So the real decision gate is the package design review, usually held weeks before the first thermal simulation is commissioned. Three parameters need to be locked at that review: TIM1 material class (solder versus phase-change versus graphite sheet), target bondline thickness under full compressive load, and die height tolerance the material can absorb without voiding.

Missing any one of them means the simulation team will eventually close a budget on paper that cannot be replicated in production.

The Graphite Sheet Option Nobody Talks About

Pyrolytic graphite sheets deserve more attention in chiplet packages where height uniformity across the die stack is achievable. Thermal conductivity in-plane reaches 700 to 1500 W/m·K, though the cross-plane value that actually matters for vertical heat extraction is only 5 to 10 W/m·K. Sounds like a non-starter.

For packages where the dominant heat path is lateral spreading into a large-footprint IHS rather than vertical conduction to a point cooler, the in-plane conductivity is the relevant number. A graphite sheet conformally bonded to a thinned die stack can spread heat from a localized hotspot across the full IHS area before the vertical resistance even comes into play. Packages where a single compute chiplet has a 30 W/mm² peak hotspot embedded in a larger 150 W total dissipation benefit from exactly this geometry.

None of that works if the TIM selection conversation happens after the IHS geometry is committed.

The Organizational Friction

Package thermal engineers know this. The disconnect is organizational. TIM selection requires simultaneous input from the die team (power map, back-side metal stack, surface roughness spec), the assembly team (reflow capability, dispensing process, rework process), and the procurement team (cost, supply reliability, long-term sourcing). Those groups rarely sit in the same room at the package design review.

The programs that close thermal budgets without late-stage heroics are the ones where TIM1 selection appears on the design review checklist before floorplanning completes. One material choice. Four parameters. Locked early. Everything downstream gets easier.
