How Chiplet Reticle Size Constraints Drive Multi-Die Partitioning Before Any Logic Is Assigned

Reticle size is one of those constraints that sits upstream of almost every other decision in a chiplet-based design, yet it rarely gets the attention it deserves in packaging discussions. People talk about UCIe interfaces, hybrid bonding pitch, and thermal co-design. The reticle limit is the quiet wall that shapes all of it.

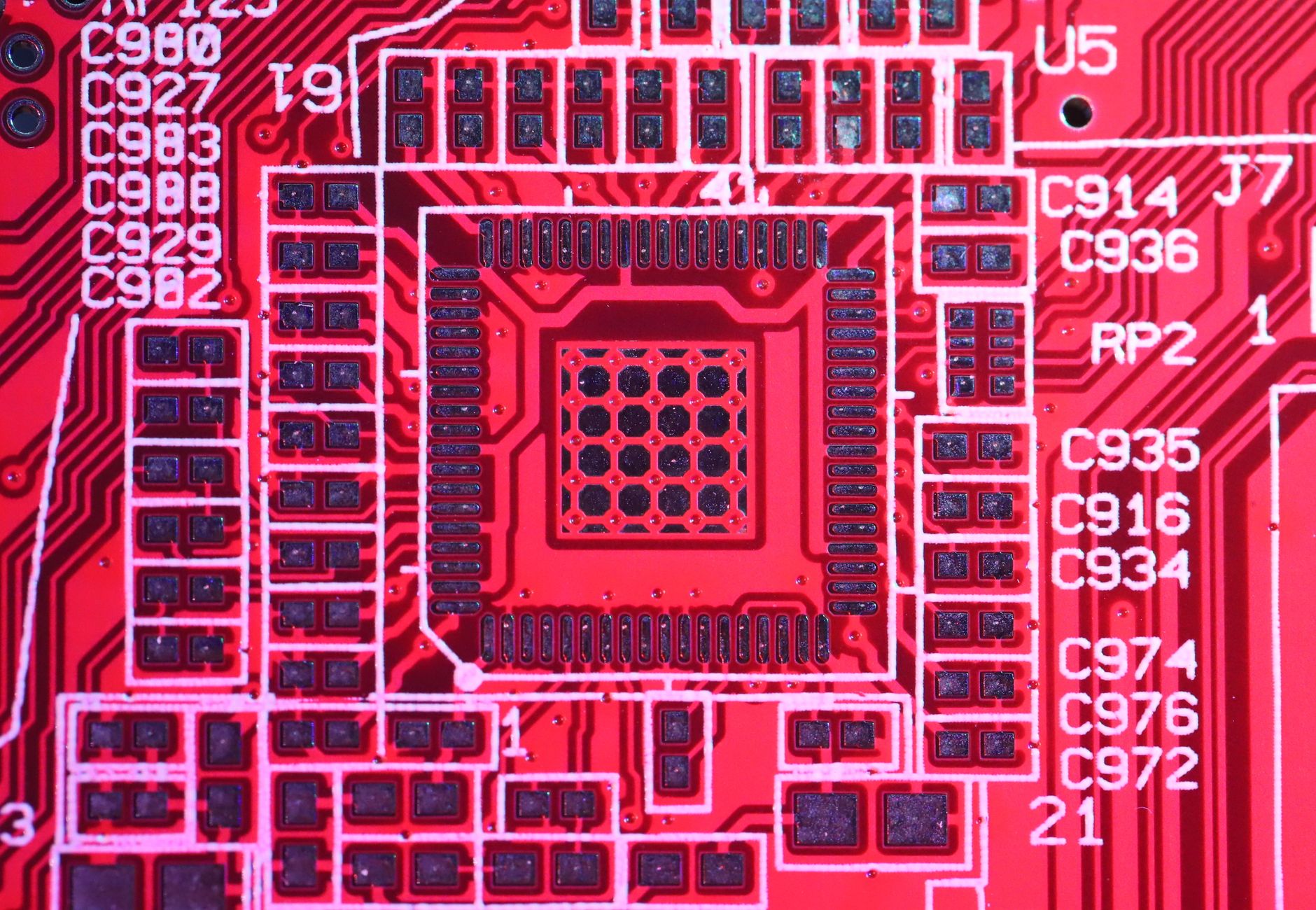

Photo by Nic Wood on Pexels.

EUV scanners at leading-edge nodes expose dies within a maximum field size of roughly 26mm × 33mm, giving you about 858mm² of usable area per reticle field. In practice, after guard rings, seal rings, and test structures eat their share, the functional die area available sits closer to 800mm². That ceiling does not move. No amount of design optimization changes the physics of the optical system.

When a compute complex grows past that boundary, the team faces a hard choice: shrink the design to fit, move to a larger node where the same transistor budget fits within the reticle, or partition into multiple dies. For AI accelerators and HPC processors pushing hundreds of billions of transistors, shrinking to fit is not realistic. The reticle limit becomes the forcing function for disaggregation.

What makes this interesting is when that forcing function hits. Partitioning decisions driven by reticle limits happen before logic synthesis, before floorplanning, before any RTL is even assigned to a tile. You are drawing die boundary lines on a block diagram, not a layout tool. Those lines determine which functional blocks must communicate across a die-to-die interface rather than through on-die wiring, and that difference costs you latency, bandwidth density, and power.

Consider a 2nm compute tile targeting 750mm². That fits within one reticle field with modest margin. Now add an integrated memory controller complex, a high-speed SerDes cluster, and enough cache to feed 128 compute cores. The aggregate logic budget likely pushes past 900mm². The partition boundary now has to fall somewhere, and the location of that boundary is load-bearing for the entire system design.

graph TD
    A[Total Logic Budget] --> B{Fits in Reticle?}
    B -- Yes --> C[Single Die]
    B -- No --> D[Partition Required]
    D --> E[Define Die Boundary]
    E --> F[Assign D2D Interface]
    F --> G[Lock Interconnect Topology]
    G --> H[Yield and Cost Model]

Where the boundary lands affects yield math immediately. Two 450mm² dies each have a defect-density-driven yield well above a single 900mm² die on the same process. The yield advantage is real, but it introduces a known-good-die assembly problem and a die-to-die interface overhead that a monolithic design does not carry. Those tradeoffs are not separable. Choosing the partition point means choosing a yield profile and an interconnect budget simultaneously.

The interconnect topology locked in at this stage also constrains the packaging approach downstream. A partition that places the memory controller on a separate die from the compute tiles demands high-bandwidth, low-latency die-to-die links. That pushes toward silicon bridge solutions or hybrid bonding rather than organic substrate routing. The reticle limit, through the partition boundary, has now shaped your packaging strategy before a single substrate stackup has been drawn.

Not every product has clean functional seams that align with the reticle boundary. A GPU compute cluster does not naturally divide at 800mm². Teams end up splitting homogeneous compute arrays across dies, which means cache coherency, power domain synchronization, and workload scheduling all have to treat die boundaries as architectural features rather than implementation details. The software stack sees this. Compiler engineers and runtime developers inherit the consequences of a decision made by process physics.

The node selection question compounds this further. Moving a design from 3nm to 5nm to escape the reticle limit trades transistor density for die area headroom. Some teams run two nodes simultaneously: a leading-edge node for the compute tiles where density matters most, and a slightly older node for I/O and analog blocks where the reticle limit is less punishing. Heterogeneous integration across process nodes gets justified partly on performance grounds, but the reticle limit often provides the original motivation.

Reticle size will not change with EUV. High-NA EUV narrows the field further, to approximately 26mm × 16.5mm, cutting the maximum die area nearly in half compared to low-NA systems. Designs that fit comfortably in one low-NA field today will require two or more high-NA exposures stitched together or a hard partition into separate dies. The chiplet model does not just become convenient at that point. For large dies on high-NA processes, it becomes the only viable path.

That is why reticle constraints belong at the top of any serious conversation about multi-die product planning. The optical system sets the boundary. Every architectural and packaging decision flows from there.
